[2022] Pass Juniper JN0-663 Exam Updated 95 Questions

Get 2022 Updated Free Juniper JN0-663 Exam Questions and Answer

Test Prerequisites

To take the Professional Service Provider Routing and Switching or JN0-663 exam, you need to first complete the Specialist Service Provider Routing and Switching certification by nailing JN0-362. Further, Juniper recommends some work experience in networking, cloud services, cloud management, security, and routing configurations. Nevertheless, the right preparation and industrial experience will get you higher chances of passing the official exam.

NO.51 Exhibit:

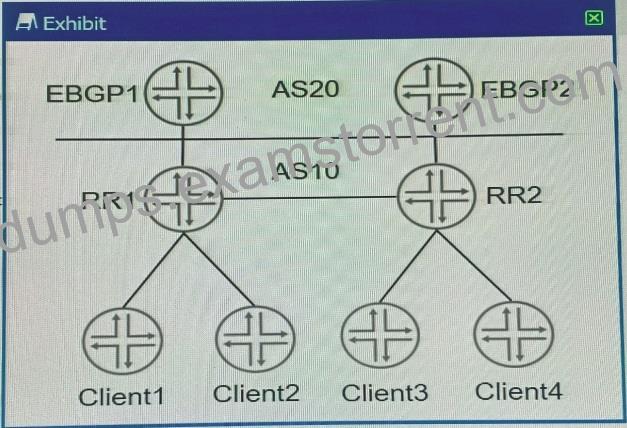

Referring to the exhibit, which two statements about route reflectors are correct? (Choose two.)

RR2 adds its cluster ID when advertising routes from CHent4 to Client3.

RR2 advertises routes learned from Client3 to EBGP2 with itself as the next hop.

RR1 advertises routes learned from Client1to RR2 with itself as the next hop.

RR1 and RR2 need the same cluster ID to exchange routes learned from their clients.

NO.52 Exhibit.

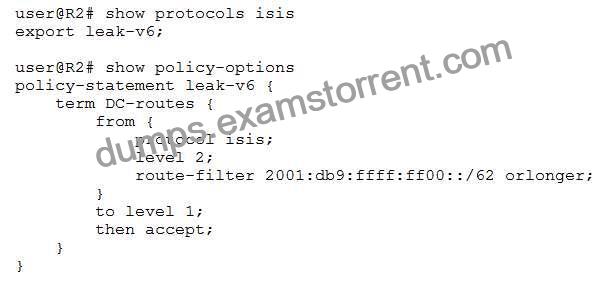

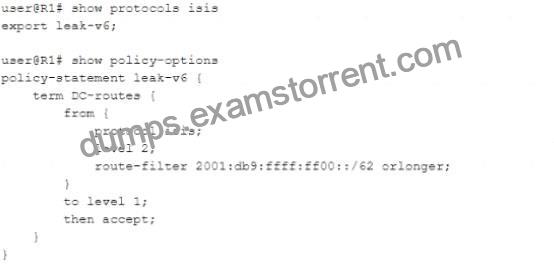

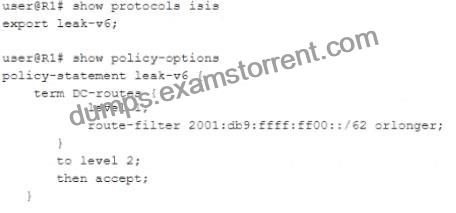

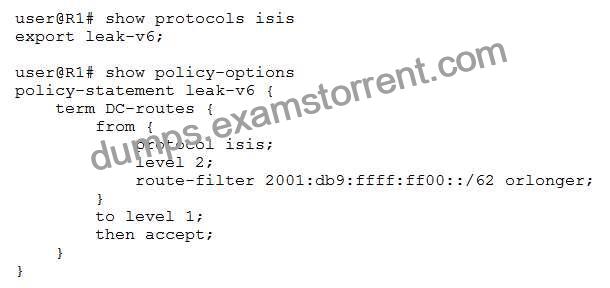

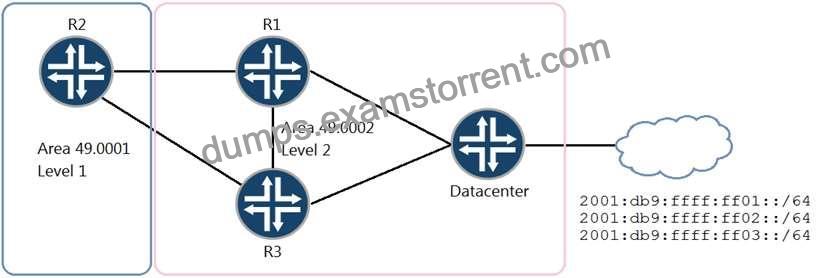

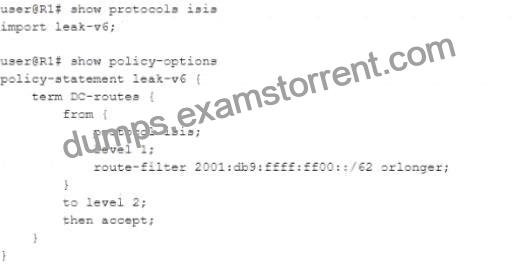

A network designer wants to ensure that traffic from R2 destined for 2001 db9:ffff:ff00. ’62 always traverses the R2-R1 link it that link is available Referring to the exhibit, which configuration change will satisfy this requirement?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NO.53 Exhibit:

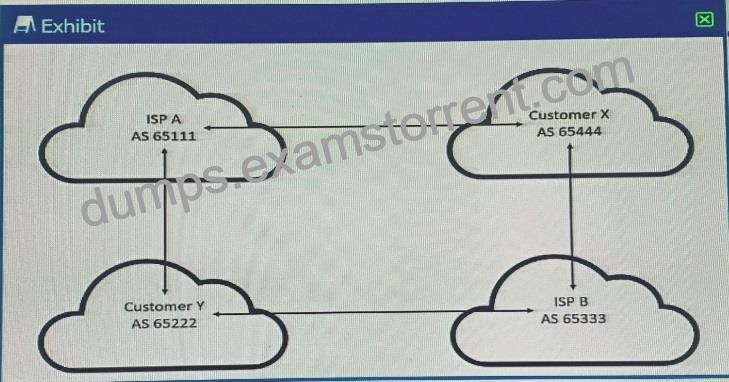

All networks shown in the exhibit contain more than one BGP speaker You operate ISP A and must ensure that Customer Y sends their traffic to you over the directly connected link. Customer Y is not to be used for transit into your network.
What would you do to accomplish this task?

Advertise routes to Customer Y with the custom defined 65535:65535 community.

Advertise routes to Customer Y with the well-known no-export community

Advertise routes to Customer X with the well-known no-advertise community.

Advertise routes to Customer X with the custom defined 0:0 community

NO.54 Exhibit:

A Layer 3 VPN exists in the provider network and the CE devices are connecting to the PE devices using BGP. The PE devices are receiving BGP routes from the CE devices and the PE devices have the CE BGP routes in their respective routing tables. However, the remote CE devices are not receiving the BGP routes.
Referring to the exhibit, what is the problem?

The CE devices are detecting an AS loop

A VRF target community mismatch exists.

A route distinguisher mismatch exists.

The PE devices are detecting an AS loop.

NO.55 Exhibit:

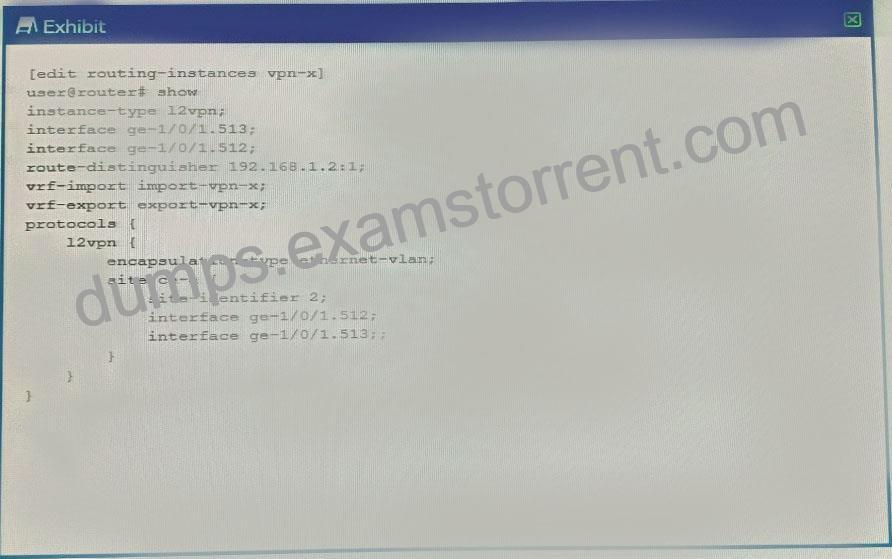

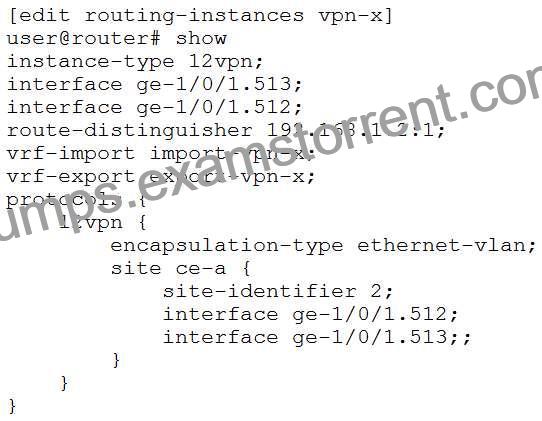

You have the Layer 2 VPN configuration shown in the exhibit. You are asked to determine the remote site ID for ge-1/0/1.512.
In this scenario, what is the remote site ID?

NO.56 Exhibit:

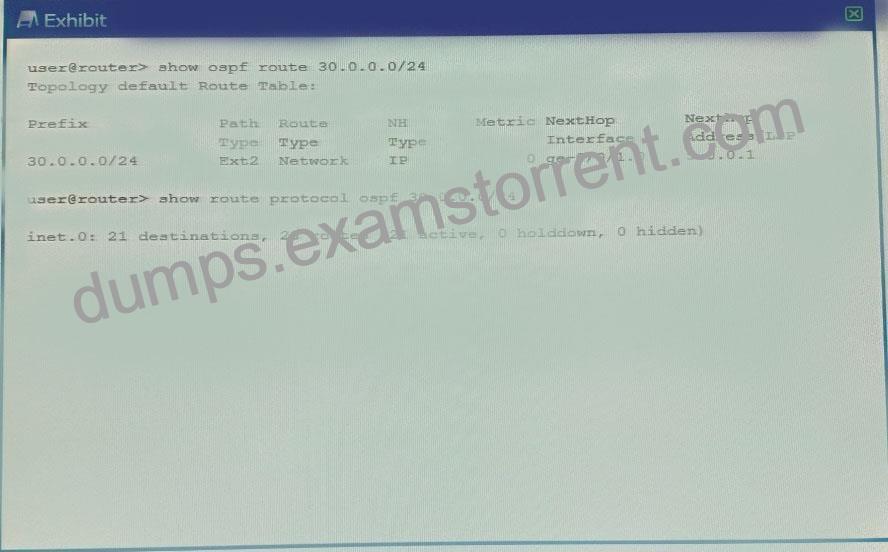

You notice an inconsistency between the routing table and the OSPF database, as shown in the exhibit.
What are two reasons for this behavior? (Choose two.)

The LSA is a Type 4 LSA.

An OSPF export policy is being applied to the route.

An OSPF import policy is being applied to the route.

The LSA is a Type 5 LSA.

NO.57 Exhibit:

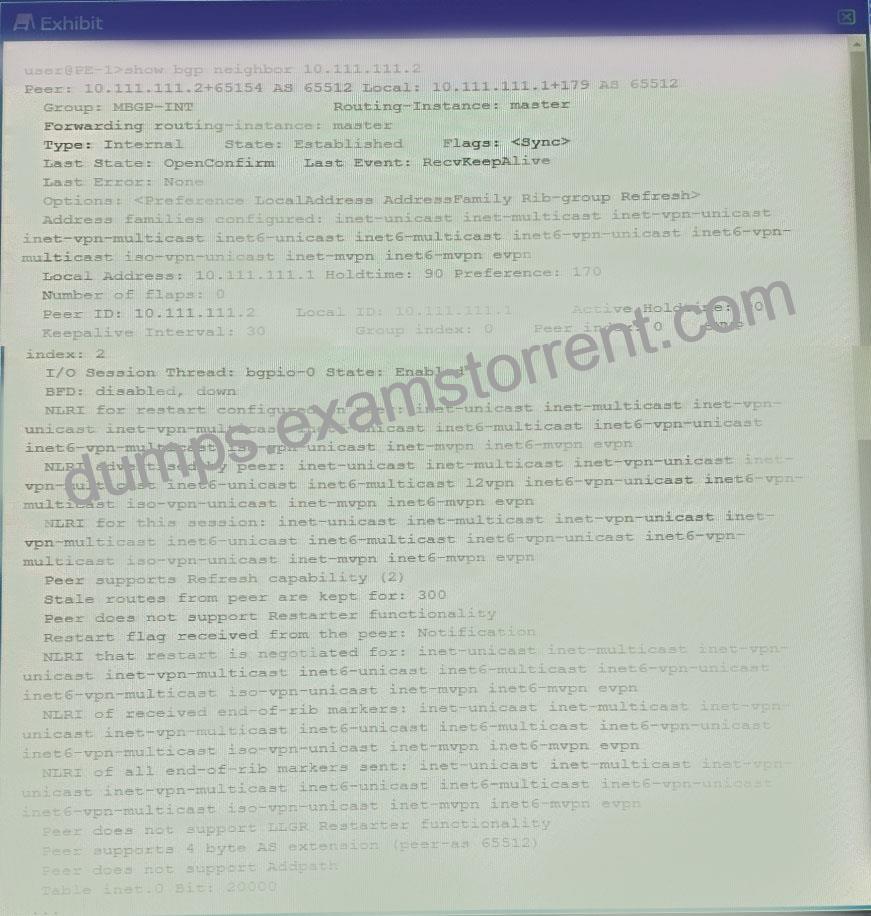

The exhibit shows a BGP peering session for two PE routers. The BGP session is up, but the hosts in the Layer
2 VPN that uses the BGP session are unable to communicate.
What is the problem in this situation?

The BGP peer does not support the restarter functionality.

The local BGP router does not support Layer 2 VPN and Layer 3 VPN NLRI address families at the same time.

There is a mismatch in the supported NLRI address families between the BGP peers.

The BGP peer does not support the add-path feature.

NO.58 Exhibit:

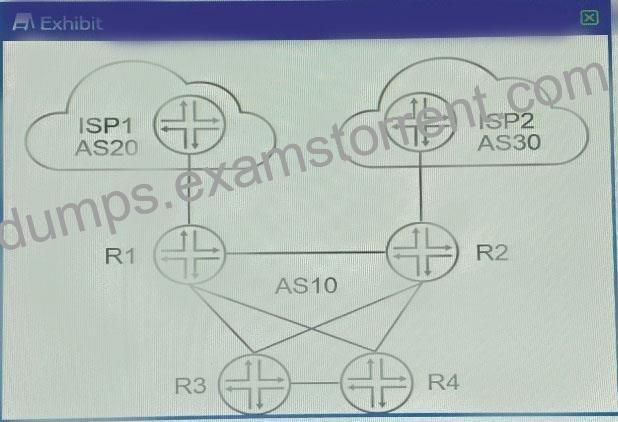

Referring to the exhibit, you want to make ISP1 your preferred connection for inbound and outbound traffic.
Which two steps will accomplish this task? (Choose two.)

Create an export policy to prepend the ASN on advertised routes and apply it to the EBGP peer on R1.

Create an export policy setting local-preference 200 and next-hop self and apply it to the IBGP peers on R1.

Create an export policy to prepend the ASN on advertised routes and apply it to the EBGP peer on R2.

Create an export policy setting local-preference 200 and next-hop self and apply it to the IBGP peers on R2.

NO.59

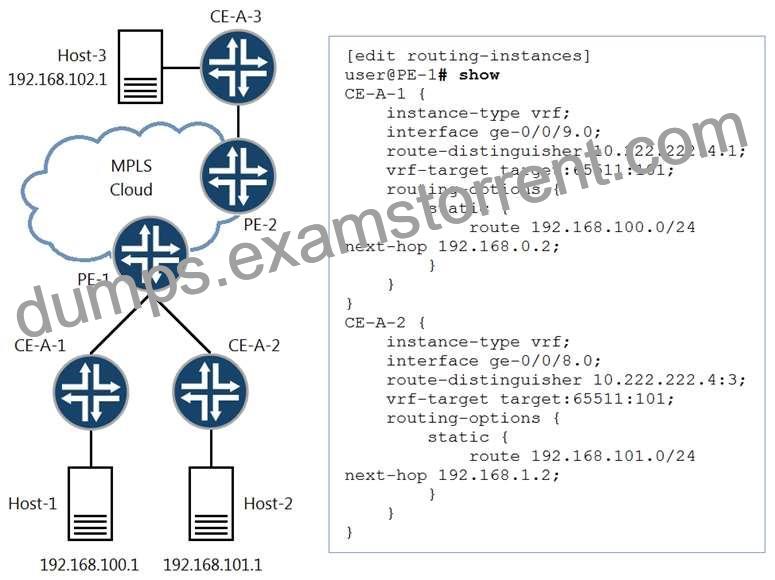

Referring to the exhibit, there is a Layer 3 VPN setup that connects sites CE-A-1, CE-A-2, and CE-A-3 together. Host-1 can communicate with Host-3, but Host-1 cannot communicate with Host-2.
What must you do to solve the problem?

Change the route distinguisher in both routing instances to the same value.

Use the next-tableconfiguration statement for static routes in the corresponding routing instances.

Use BGP instead of static routing between the CE and PE devices.

Use the auto-exportcommand in both routing instances.

NO.60

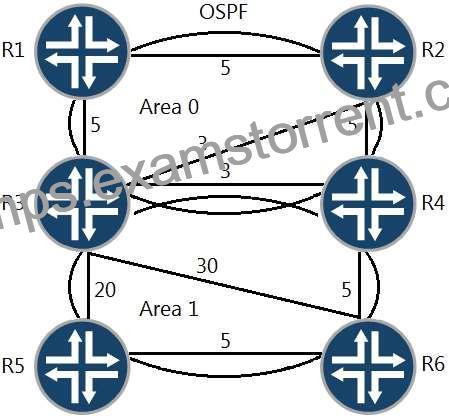

Referring to the exhibit, which path would traffic passing through R1 take to get to R6?

R1 -> R2 -> R4 -> R6

R1 -> R2 -> R3 -> R6

R1 -> R3 -> R5 -> R6

R1 -> R3 -> R4 -> R6

NO.61 Which two statements are correct about Opaque LSAs in OSPF? (Choose two )

Type 9 LSAs are used for graceful-restart and have link-local scope

Type 11 LSAs are used for MPLS label exchange and have link-local scope

Type 10 LSAs are used for MPLS traffic-engineering and have area scope.

Type 11 LSAs are used for MPLS traffic-engineering and have area scope

NO.62 Exhibit:

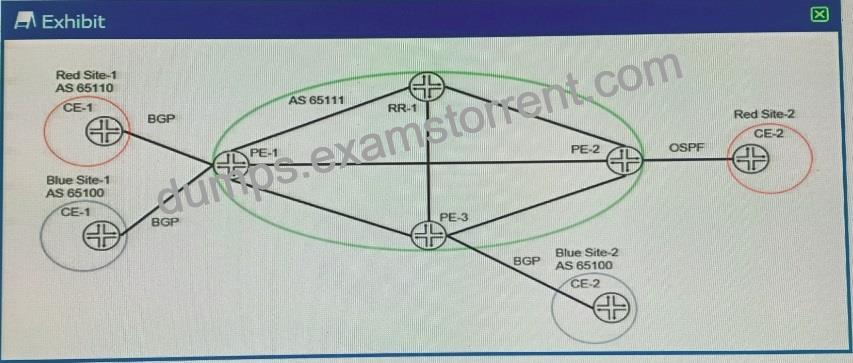

You have a Layer 3 VPN established between PE-1 and PE-2 as well as between PE-1 and PE-3. You are using a route reflector (RR-1) to distribute VPN routes to your IBGP peers. You are asked to ensure that only relevant routes are sent from RR-1 to each of the PE routers.
Referring to the exhibit, which statement is correct?

You should use VRF export policies on RR-1 to control which routes are sent to each PE router.

You should use route target filtering on RR-1 and all the PE devices to control which routes are sent to each PE router.

You should use firewall filtering on RR-1 and all the PE devices to control which routes are sent to each PE router.

You should use route target filtering only on RR-1 to control which routes are sent to each PE router.

NO.63 Exhibit:

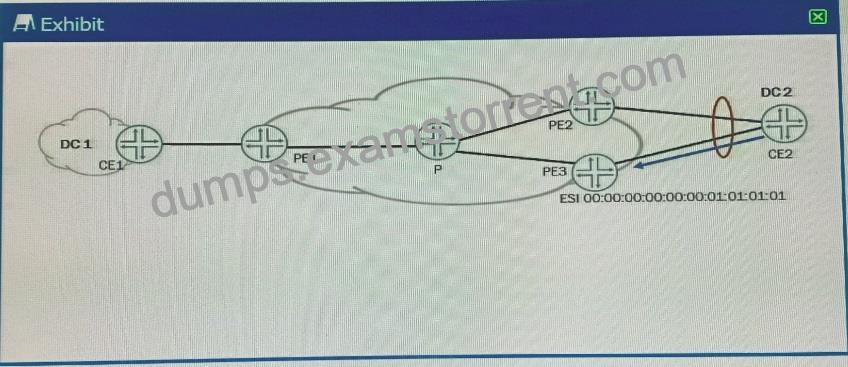

Referring to the exhibit, traffic sent from CE-A2 to PE3 does not loop back to CE-A2 through PE2.
Which two EVPN functions accomplish this task? (Choose two.)

split horizon

aliasing

multicast ingress replication

designated forwarder election

NO.64 Exhibit:

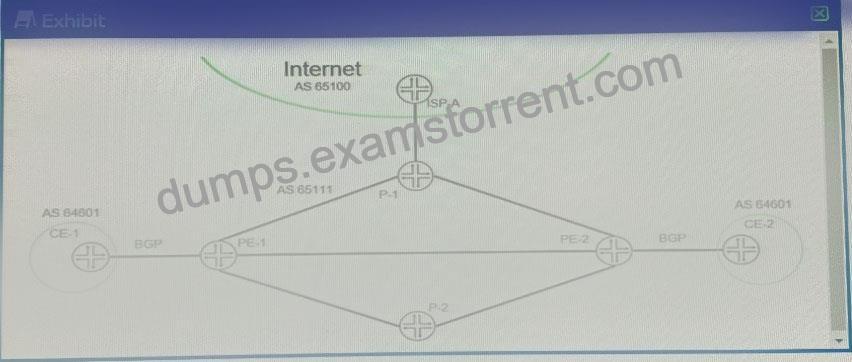

Referring to the exhibit, you have recently established a Layer 3 VPN between PE-1 and PE-2, connecting the two CE sites. Rowing information is being shared between sites and the customer has two-way communication After adding this VPN to your core network, PE-1 and PE-2 are no longer able to forward traffic to the Internet.
In this scenario, what is the problem?

You must configure the inet unicast NLRI for the BGP session on both your PE devices.

You must configure a separate internal BGP group on both your PE devices specifically for Internet connectivity.

You must configure the inet-vpn NLRI for the BGP sessions on both your PE devices.

You must configure a multihop external BGP session between your PE devices and the Internet provider’s ISP-A device.

NO.65 Exhibit:

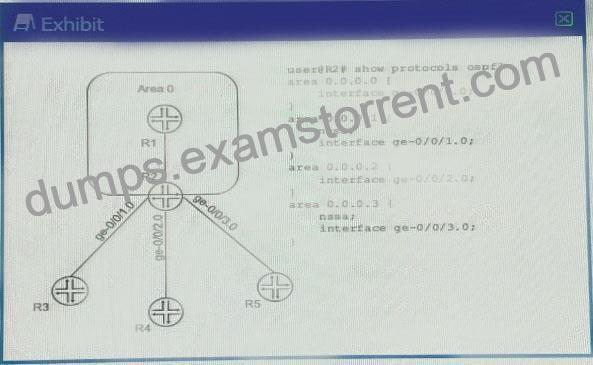

A network administrator is concerned about the number of LSAs that they are observing on the network.
What will reduce Type 7 LSAs advertised from R2 to the non-backbone routers shown in the exhibit?

Configure no-summaries under protocols ospf3 on R2.

Configure no-naaa-abr under protocols ospf3 on R2.

Configure no-summaries under area 0.0.0.2 on R2.

Configure nssa under area 0.0.0.2 on R2.

NO.66 Exhibit:

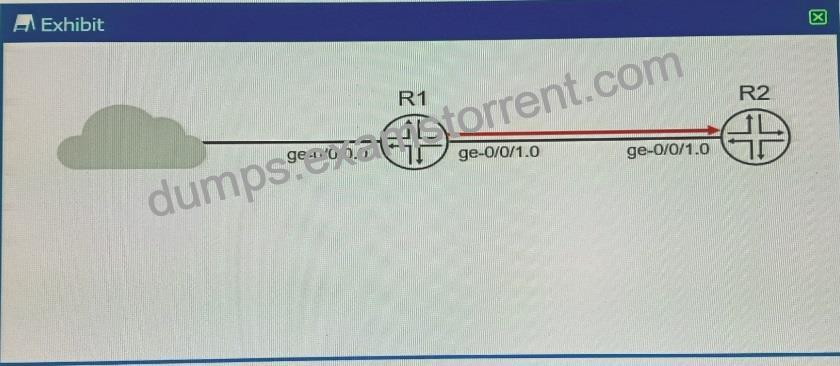

R1 assigns incoming voice traffic to the ef forwarding class. All other traffic is assigned to the best-effort forwarding class You have configured a CoS re-write rule on R1 to include the correct CoS bit values in packets sent towards R2 You want R2 to classify traffic using the CoS markings created by R1.
Which two configuration steps are necessary to accomplish this task? (Choose two.)

Configure a CoS re-write rule on R2 and assign matching CoS values.

Assign the CoS re-write rule to the ge-0/0/1.0 interface on R2.

Assign the behavior aggregate classifier to the ge-0/0/1.0 interface on R2.

Configure a behavior aggregate classifier on R2.

NO.67 You are considering different MPLS VPN connectivity options of a new customer deployment Your customer requires shared LSPs Layer 2 connectivity and auto-provisioning Which type of VPN satisfies the requirements?

BGP Layer 3 VPNs

circuit cross-connects

BGP Layer 2 VPNs

LDP Layer 2 circuits

NO.68 Which two statements about virtual links are correct? (Choose two.)

Virtual links are used for control plane traffic.

Virtual links are point-to-point.

Virtual links are excluded from SPF calculations.

Virtual links are bidirectional.

NO.69 Exhibit:

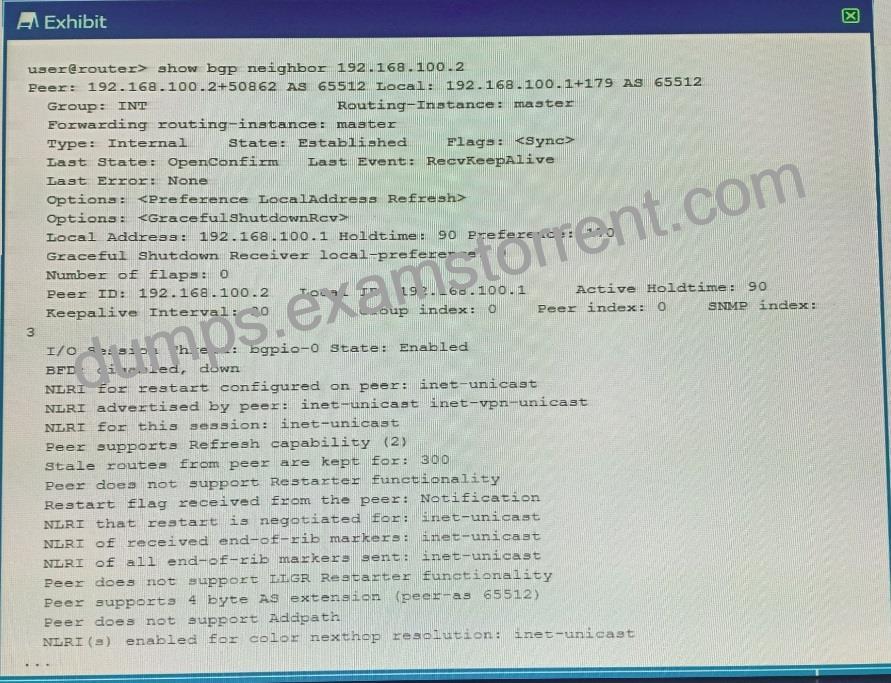

Referring to the exhibit, the local BGP router is receiving IPv4 routes from the BGP neighbor, but it is not receiving L3 VPN routes from the BGP neighbor.
Which two actions should you take to solve this problem? (Choose two.)

Configure the family inet-vpn unicast statement on the local BGP router.

Configure the family inet unicast statement on the local BGP router.

Configure the family inet unicast statement on the BGP neighbor

Configure the family inet-vpn unicast statement on the BGP neighbor.

NO.70

You have the Layer 2 VPN configuration shown in the exhibit. You are asked to determine the remote site ID for ge-1/0/1.512.
In this scenario, what is the remote site ID?

NO.71 Exhibit:

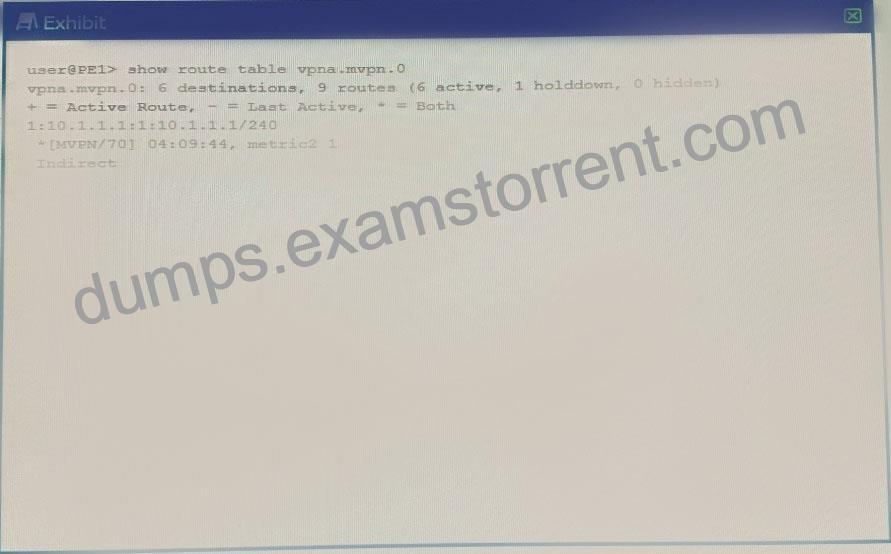

The route shown in the exhibit is an example of which type of next-generation MVPN route?

Type 3 Selective MVPN autodiscovery route

Type 1 Intra-AS inclusive MVPN membership discovery

Type 2 Inter-AS inclusive MVPN membership discovery

Type 4 Selective MVPN autodiscovery route for leaf

NO.72

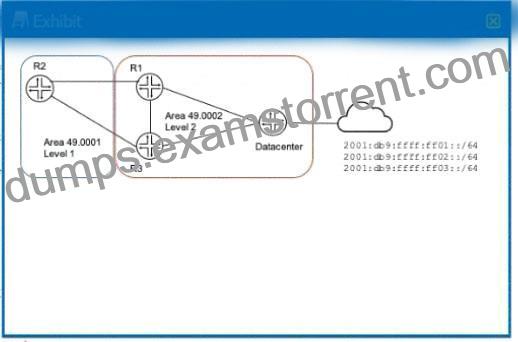

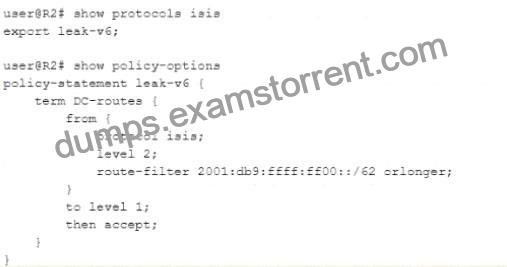

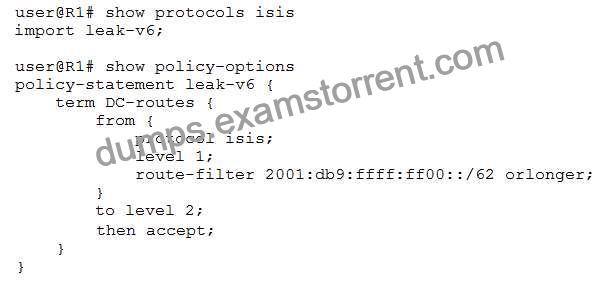

A network designer wants to ensure that traffic from R2 destined for 2001:db9:ffff:ff00::/62 always traverses the R2-R1 link if that link is available.
Referring to the exhibit, which configuration change will satisfy this requirement?

NO.73 Exhibit:

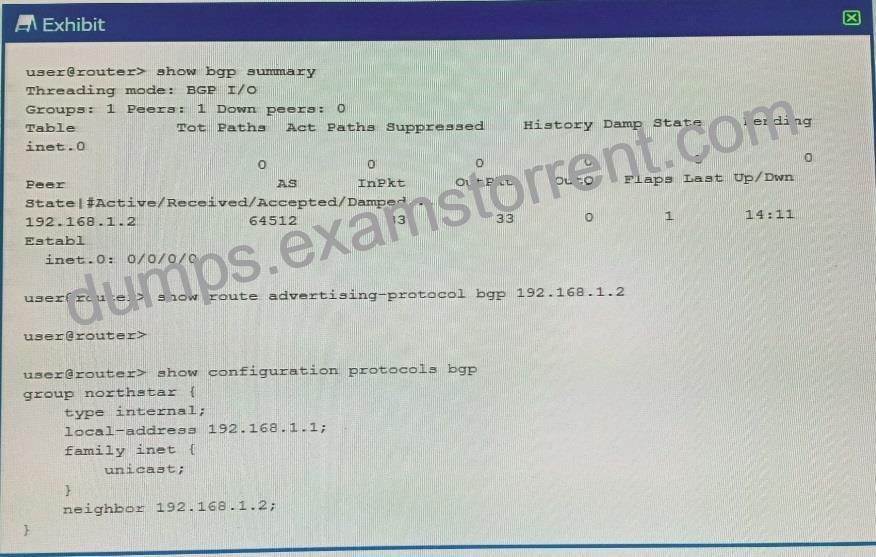

You are troubleshooting BGP routing issues between two MX Series routers. The BGP session is established but no BGP routes are being communicated.
What are two reasons for this problem? (Choose two.)

The peer type should be external.

No active BGP routes are in the inet.0 table

table ii No export routing policy is applied.

The peers are in different ASs.

NO.74

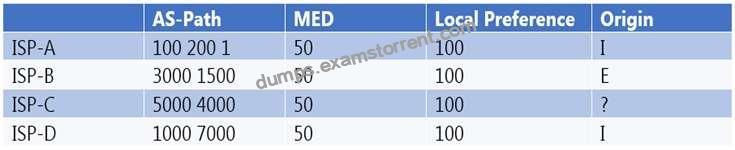

You are receiving the same 200.0.0.0/24 BGP route from four different ISPs.
Referring to the exhibit, which ISP’s route would be selected as active?
