Real HP HPE6-A85 Exam Dumps with Correct 115 Questions and Answers [Q59-Q81]

Explanation
These commands might help troubleshoot this issue as they check various aspects of the connectivity between the edge switch and the core switch, such as Layer 3 reachability, Layer 2 adjacency, LACP configuration and status, VLAN trunking configuration, and interface status.
References:https://www.arubanetworks.com/techdocs/AOS-CX_10_04/CLI/GUID-8F0E7E8B-0F4B-4A3C-AE7

A static route is a route that is manually configured on a router or switch and does not change unless it is modified by an administrator. Static routes are used to specify how traffic should reach specific destinations that are not directly connected to the device or that are not reachable by dynamic routing protocols. In Aruba CX switches, static routes can be configured using the ip route command in global configuration mode. Based on the “show ip route” output on an Aruba CX 8400 switch, the route “10.1 20
0/24, vrf default via 10.1.12.2, [1/0]” is a static route because it has an administrative distance of 1 and a metric of 0, which are typical values for static routes.
References:
https://en.wikipedia.org/wiki/Static_routing
https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static- routes.h

Explanation
Aruba Central allows you to create device configuration groups that define common settings for devices within each group. You can create different types of groupsdepending on your network requirements and management preferences. Two types of groups that you can define in Aruba Central during group creation are:
Template group: A template group allows you to create configuration templates using variables and expressions that can be applied to multiple devices or device groups. Template groups provide flexibility and scalability for managing large-scale deployments with similar configurations.
Default group: A default group is automatically created when you add devices to Aruba Central for the first time. The default group contains basic configuration settings that are applied to all devices that are not assigned to any other group. You can modify or delete the default group as needed.
References: https://www.arubanetworks.com/techdocs/Central/latest/content/nms/device-groups.htm
https://www.arubanetworks.com/techdocs/Central/latest/content/nms/template-groups.htm
https://www.arubanetworks.com/techdocs/Central/latest/content/nms/default-group.htm

The advantage of Layer 2 MAC authentication is that it does not require any setup or configuration on the client device. The network devices (like switches or access points) perform the authentication automatically based on the MAC address of the device when it tries to connect to the network.

When checking the status of LACP (Link Aggregation Control Protocol) with the command “show lacp interfaces,” various flags indicate the state of the LACP negotiation. “ALFOE” indicates different states for each letter: A (Activity), L (Link), F (Aggregation), O (Synchronization), and E (Collecting). In this context, the O flag is particularly of interest. If the O flag is not set (meaning the synchronization is not achieved), it typically suggests that LACP is not configured or not functioning correctly on the peer side, hence the link is not operational as part of an LACP channel.

dBm is a unit of power that measures the ratio of a given power level to 1 mW. The formula to convert dBm to mW is: P(mW) = 1mW * 10^(P(dBm)/10). Therefore, -20 dBm corresponds to 0.01 mW, as follows: P(mW) = 1mW * 10^(-20/10) = 0.01 mW Reference: https://www.rapidtables.com/convert/power/dBm_to_mW.html The dBm is a logarithmic unit of power relative to 1 milliwatt (mW). -20 dBm means that the signal strength is 20 decibels lower than 1 mW. In terms of mW, this is 0.01 mW. Each 10 dB decrease represents a tenfold decrease in power. Therefore, -20 dBm is 10-210-2 or 0.01 mW.

When a wireless client’s countdown timer (also known as a backoff timer) reaches zero during contention-based access periods, and it receives a Transmit Opportunity (TXOP), it has the right to transmit its data frames on the medium. After sending the data frames, it expects an acknowledgment (ACK) from the Access Point (AP) to ensure the frames were received successfully.

These commands might help troubleshoot this issue as they check various aspects of the connectivity between the edge switch and the core switch, such as Layer 3 reachability, Layer 2 adjacency, LACP configuration and status, VLAN trunking configuration, and interface status.
References: https://www.arubanetworks.com/techdocs/AOS-CX_10_04/CLI/GUID-8F0E7E8B-0F4B-
4A3C-AE

Explanation
A UXI (User Experience Insight) is a device that simulates user behavior and tests network performance from the user perspective. It can check different applications, such as HTTP, VOIP, or Office 365, and measure metrics such as latency, jitter, packet loss, and throughput.
References:https://www.arubanetworks.com/products/networking/user-experience-insight/

A static route is a route that is manually configured on a router or switch and does not change unless it is modified by an administrator. Static routes are used to specify how traffic should reach specific destinations that are not directly connected to the device or that are not reachable by dynamic routing protocols. In Aruba CX switches, static routes can be configured using the ip route command in global configuration mode. Based on the “show ip route” output on an Aruba CX 8400 switch, the route “10.1 20 0/24, vrf default via 10.1.12.2, [1/0]” is a static route because it has an administrative distance of 1 and a metric of 0, which are typical values for static routes. Reference: https://en.wikipedia.org/wiki/Static_routing https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/show-ip-route.htm

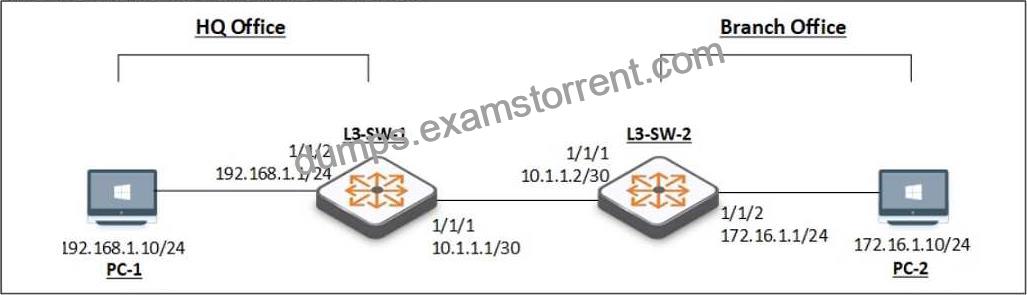

Using the provided topology and show command output, it can be determined that L3-SW-2 in the Branch Office does not have a route to reach the subnet where PC1 resides (192.168.1.0/24 in the HQ Office). L3-SW-1 in the HQ Office has a route to the Branch Office subnet (172.16.1.0/24), but without the reciprocal route on L3-SW-2, traffic from the Branch Office will not be able to reach the HQ Office subnet, hence PC1 cannot ping PC2.

Explanation
QoS Quality of Service (QoS) is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements. QoS can improve network performance, reduce latency, increase throughput, and prevent congestion. concept and its definition. Here is my answer:

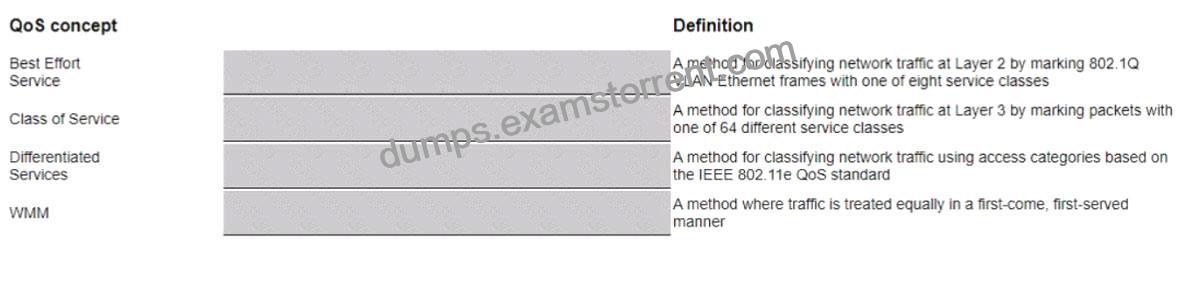

QoS Concept:
Best Effort Service
Class of Service
Differentiated Services
WMM ====================== Definition:
d) A method where traffic is treated equally in a first-come, first-served manner a) A method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes b) A method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes c) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard Short But Comprehensive Explanation of Correct Answer Only: The correct match between QoS concept and its definition is as follows:

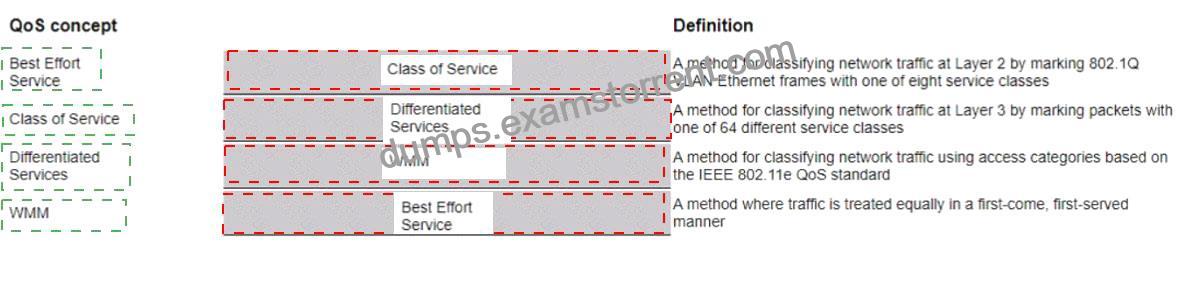

Best Effort Service: This is a method where traffic is treated equally in a first-come, first-served manner without any prioritization or differentiation. This is the default service level for most networks and applications that do not have specific QoS requirements or guarantees. Best Effort Service does not provide any assurance of bandwidth, delay, jitter, or packet loss.
Class of Service: This is a method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes (0 to 7). These service classes are also known as IEEE
802.1p priority values or PCP Priority Code Point (PCP) is a 3-bit field in the 802.1Q VLAN tag that indicates the priority level of an Ethernet frame . Class of Service allows network devices to identify and handle different types of traffic based on their priority levels. Class of Service is typically used in LAN Local Area Network (LAN) is a network that connects devices within a limited geographic area, such as a home, office, or building environments where Layer 2 switching is predominant.
Differentiated Services: This is a method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes (0 to 63). These service classes are also known as DiffServ Code Points (DSCP) DiffServ Code Point (DSCP) is a 6-bit field in the IP header that indicates the service class of a packet . Differentiated Services allows network devices to identify and handle different types of traffic based on their service classes. Differentiated Services is typically used in WAN Wide Area Network (WAN) is a network that connects devices across a large geographic area, such as a country or continent environments where Layer 3 routing is predominant.
WMM: This is a method for classifying network traffic using access categories based on the IEEE
802.11e QoS standard. WMM stands for Wi-Fi Multimedia and it is a certification program developed by the Wi-Fi Alliance to enhance QoS for wireless networks. WMM defines four access categories (AC): Voice, Video, Best Effort, and Background. These access categories correspond to different priority levels and contention parameters for wireless traffic. WMM allows wireless devices to identify and handle different types of traffic based on their access categories.
References: https://en.wikipedia.org/wiki/Quality_of_service
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_dfsrv/configuration/xe-16/qos-dfsrv-xe-16-book/qos-dfsr
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/81831-qos-wlan.html
https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-wmm

Wireless client roaming decisions are made by the client device based on its own criteria, such as signal strength, noise level, data rate, etc. The network can influence the client’s roaming decision by providing information such as neighbor reports, load balancing, band steering, etc., but the final decision is up to the client.
References: https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/wlan- roaming/cl

Explanation

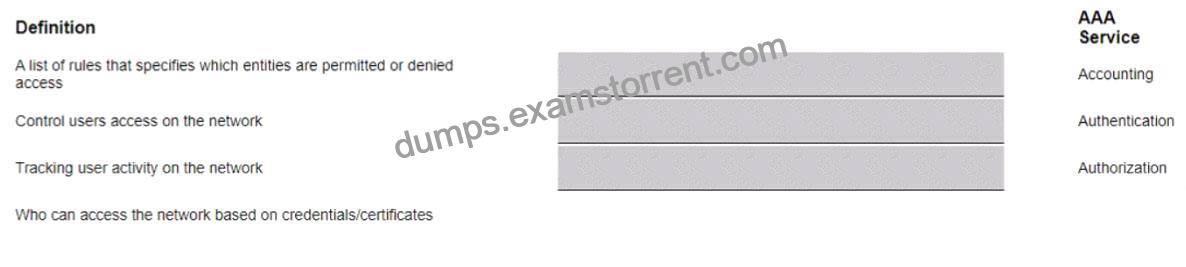

AAA Authentication, Authorization, and Accounting (AAA) Authentication, Authorization, and Accounting (AAA) is a framework that provides security services for network access control . AAA consists of three components:
Authentication: The process of verifying the identity of a user or device that wants to access the network based on credentials such as username and password , certificates , tokens , etc . Authentication can use different protocols such as PAP , CHAP , EAP , RADIUS , TACACS+ , etc .
Authorization: The process of granting or denying access to network resources based on the identity and privileges of a user or device . Authorization can use different methods such as ACLs , RBAC , MAC , DAC , etc .
Accounting: The process of recording and reporting the activities and usage of network resources by users or devices . Accounting can use different formats such as syslog , SNMP , NetFlow , etc .
service. Here is my answer:

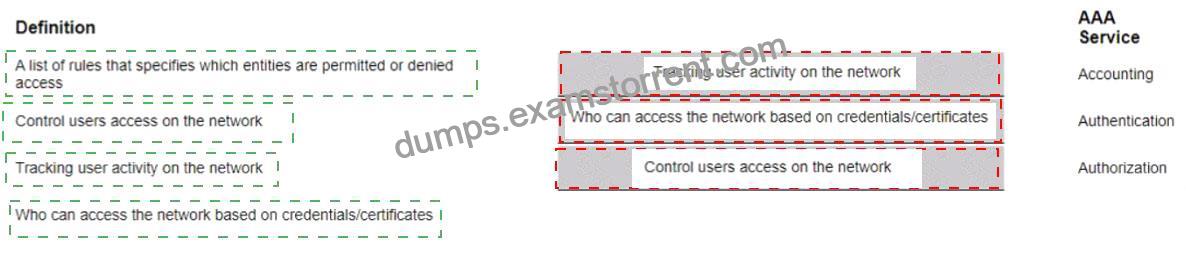

The correct match for each AAA service with its definition is:
Accounting: C. Tracking user activity on the network
Authentication: D. Who can access the network based on credentials/certificates Authorization: B. Control users access on the network The other options are not correct matches because:
A list of rules that specifies which entities are permitted or denied access: This option is a definition of an access control list (ACL) Access Control List (ACL) Access Control List (ACL) is a list of rules that specifies which entities are permitted or denied access to a network resource such as a router , switch , firewall , server , etc . ACLs can be based on different criteria such as source and destination IP addresses , port numbers , protocol types , time of day , etc . ACLs can be applied to different interfaces or directions such as inbound or outbound . ACLs can be verified by using commands such as show access-lists , show ip access-lists , debug ip packet , etc . , not an AAA service.
Who can access the network based on credentials/certificates: This option is a definition of authentication, not authorization. Authorization is the process of granting or denying access to network resources based on the identity and privileges of a user or device, not based on credentials/certificates.
References: https://en.wikipedia.org/wiki/AAA_(computer_security)
https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-1

The Address Resolution Protocol (ARP) is used to map layer-3 IP addresses to layer-2 MAC addresses.
When a device on a network wants to communicate with another device, it uses ARP to find the MAC address that corresponds to the IP address it wishes to communicate with, allowing it to construct a frame for the local network.

Profiling is a feature that allows Aruba switches to automatically identify and classify devices connected to them based on various attributes such as MAC address, DHCP options, LLDP information, etc. Profiling can be used to dynamically set the PoE priority on a switch port based on the device type and power requirements. For example, an IP camera may have a higher PoE priority than a printer or a PC. Profiling can also be used to apply other configuration settings such as VLANs, ACLs, QoS, etc. based on the device profile. Reference: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/profiling.htm

The administrative distance is used as a trust rating for route entries (B). It is a metric used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. The lower the administrative distance value, the more trustworthy the source of the route. For example, a directly connected network has an administrative distance of 0 because it is the most trusted source of routing information. In contrast, routes learned from different routing protocols have higher administrative distances, reflecting their relative trustworthiness.

Explanation
MSTP Multiple Spanning Tree Protocol. MSTP is an IEEE standard protocol for preventing loops in a network with multiple VLANs. MSTP allows multiple VLANs to be mapped to a reduced number of spanning-tree instances. configuration ID consists of two parameters: name and revision. The name is a
32-byte ASCII string that identifies the MSTP region, which is a group of switches that share the same configuration ID and VLAN-to-instance mapping. The revision is a 16-bit number that indicates the version of the configuration ID. By default, the MSTP configuration ID name is set to the switch IMC address, which is a unique identifier derived from the MAC address Media Access Control address. MAC address is a unique identifier assigned to a network interface controller (NIC) for use as a network address in communications within a network segment. of the switch.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/mstp/

Explanation
When using an Aruba standalone AP, selecting “Native VLAN” for the Client VLAN Assignment means that the clients will get their IP addresses from the same subnet as the access point’s IP address. This is because the access point acts as a DHCP server for the clients in this mode.
References:https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/iap-dhcp/iap-dhc
